1. The basic functionality of a D flip-flop can be implemented by a J-K flip-flop by connecting the input signal D to the J-K flip-flop's J input and D' to the K input.

Show that this is true by comparing the characteristic equations for a D flip-flop and a J-K flip-flop.

Q+=QK'+Q'J=QD+Q'D=(Q+Q')D=D which is the same as the characteristic equation fo rthe D flip-flop.

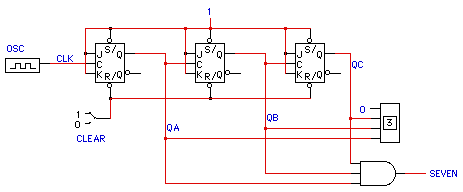

2. Given the following circuit diagram, complete the waveform diagram
